FJD AG1

GUIDANCE SYSTEM

guidance system,tractor guidance system,tractor gps,virtual terminal,steering system,gps guidance for tractors,agriculture gps systems,gps guidance system,gps systems for tractors,farming gps systems

Name: FJD AG1 Guidance System
Brand: FJDynamics
Rating: 4.6 (95 reviews)

Become Dealer

guidance system,tractor guidance system,tractor gps,virtual terminal,steering system,gps guidance for tractors,agriculture gps systems,gps guidance system,gps systems for tractors,farming gps systems

Extensive Compatibility — Extensive
Compatibility

Wireless Connectivity — Wireless
Connectivity

Multiple Guidance Lines — Multiple
Guidance Lines

* Coming soon

Modular Design

ISOBUS

Wireless Connectivity

Easy Installation

Remote Data Management

Autosteering Support

Implement Retrofit

Vehicle Data Monitoring

Manual Guidance with Ease and Precision

The FJD AG1 Guidance System integrates various positioning technologies (PPP, RTK, SBAS), offering precise location accuracy of up to 2.5cm for manual steering and assisting users in staying on the planned path. With its simplified configuration and an entry-level price, it significantly boosts efficiency while keeping costs in check, providing a streamlined experience.

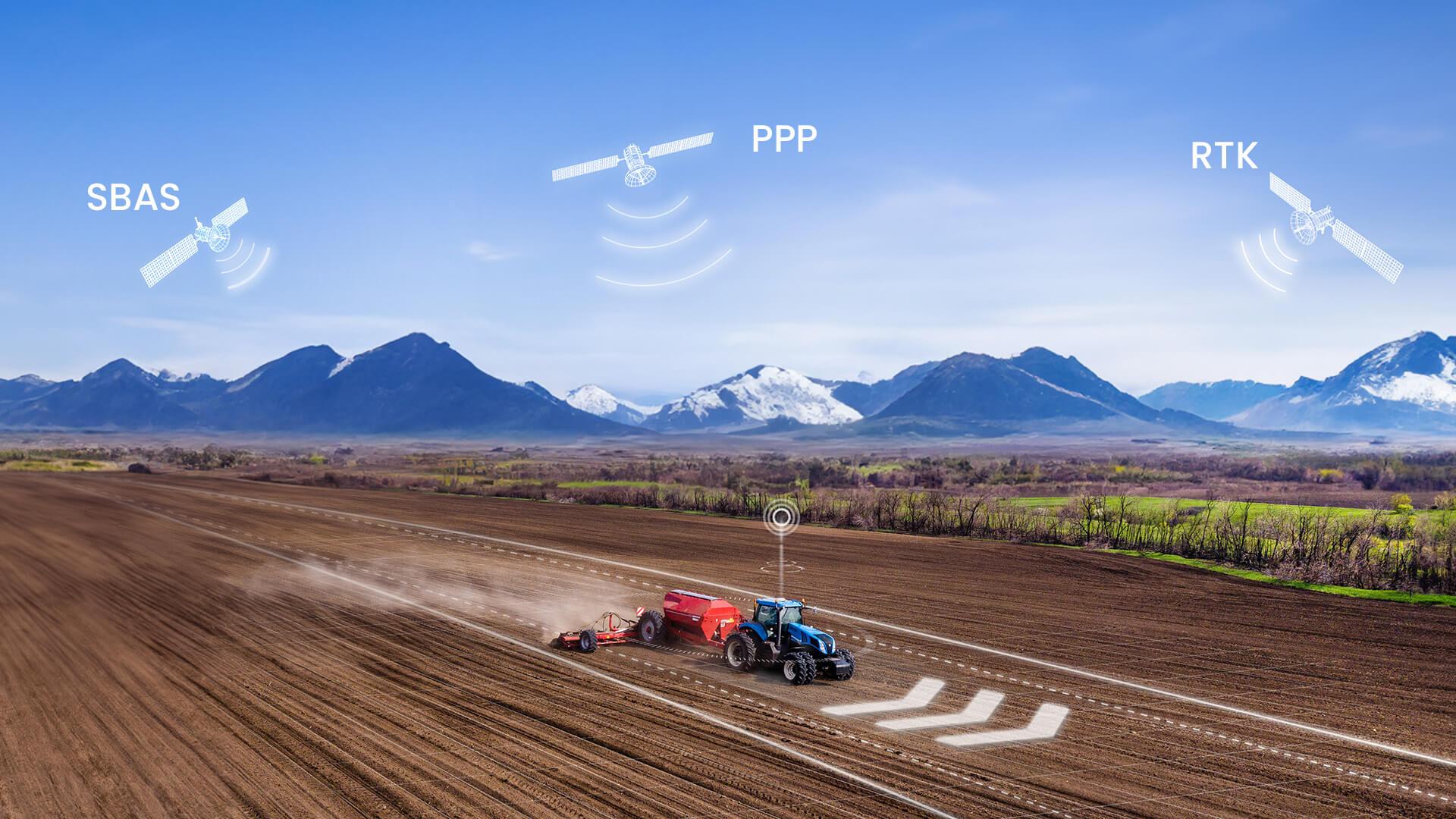

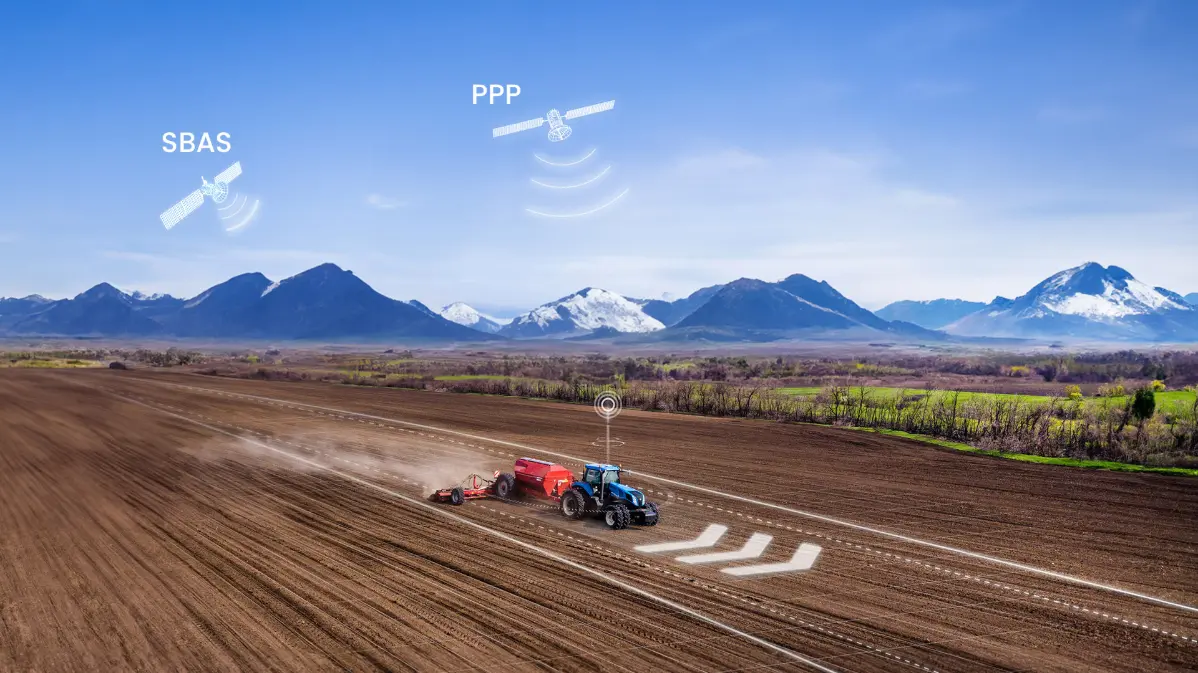

Multiple Accuracy Solutions

In addition to general GNSS services, the system can deliver 10-20 cm accuracy utilizing PPP (Galileo & Beidou supported), and 20-50 cm accuracy by SBAS without the need for network or base station infrastructure. Additionally, exceptional positioning accuracy of 2.5 cm can be achieved through RTK with network or base station.

Extensive Functions

The AG1 guidance system offers a variety of guidance lines, including straight line, curve, A+ line, pivot, and line group, catering to diverse field shapes and operational requirements. Additionally, it supports guidance line translation and data transfer in multiple formats, providing exceptional performance at an affordable entry-level price.

Guidance Lines of Field Guidance Systems

Diverse Guidance Lines
Guidance Line Adjustment

Straight line, curve, A+ line, pivot and line group are available for diverse field shapes and operation needs.

Implement Management with ISOBUS

With a wireless ISOBUS module, the agriculture machinery guidance system offers VT/TC capabilities, facilitating real-time monitoring and control of equipment. This streamlines essential tasks like seeding, fertilizing, and spraying, significantly boosting work efficiency and minimizing waste.
Note: Additional ISOBUS module required; feature coming soon.

Streamline implement operation by enabling control of diverse implements from multiple brands through a single terminal.

Records and provides information on operations, assisting in task scheduling and execution for the implement, enabling automated and more fine-grained control.

Virtual Terminal (VT)
Task Controller Section Control (TC-SC)

Streamline implement operation by enabling control of diverse implements from multiple brands through a single terminal.

Effortless Installation with Simplified Configuration

With only a guidance terminal and wirelessly connected GNSS receiver, you can effortlessly set it up and say goodbye to the hassle wiring connections for a simplified, intuitive experience.

Select Your Ideal Configuration

AG1 - Standard Configuration

· Ideal for beginners, budget-friendly
· Quick and easy setup
· Intuitive and user-friendly operation

The AG1 system takes a major leap forward with ISOBUS integration, transforming your farm into a hub of precise monitoring and effortless control with multiple implements from different brands through a single terminal.

AG1 with ISOBUS

· Implement monitoring and controlling
· All operations managed from a single terminal
· Adaptable across various scenarios

The AG1 manual guidance system offers the flexibility to upgrade to an autosteering system, providing users with the added benefit of hands-free operation and precise control. This upgrade allows users to experience effortless precision and increased efficiency in their farming operations. Additionally, the guidance terminal can be used as a secondary screen, offering expanded viewing options and enhancing the user's overall experience.

AG1 - Upgrade to Autosteering System

· Hands-free operation
· Reduced operator fatigue
· Two terminals for expanded viewing options

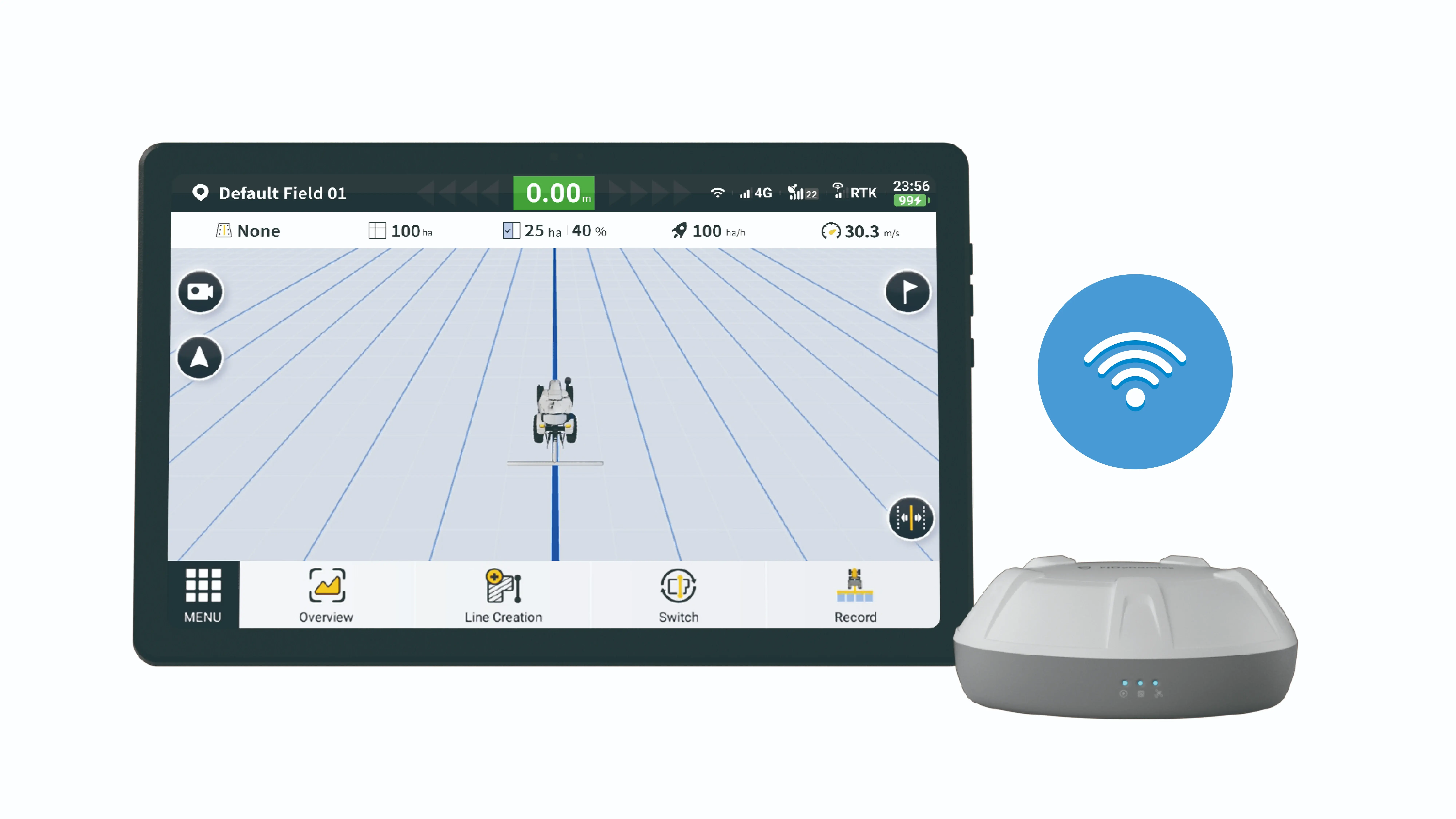

AG1 Standard

Designed for beginners in precision agriculture, the AG1 Standard supports wireless connection with GNSS receiver and display via Wi-Fi, helping you quickly start your smart farming journey with confidence and ease.

Featuring multi-source satellite signals from RTK, PPP, and SBAS, the AG1 Standard offers positioning accuracy from decimeters to up to 2.5cm at no cost. Powered by built-in algorithms, the system works independently with a sub-meter positioning accuracy even in signal-challenging areas.

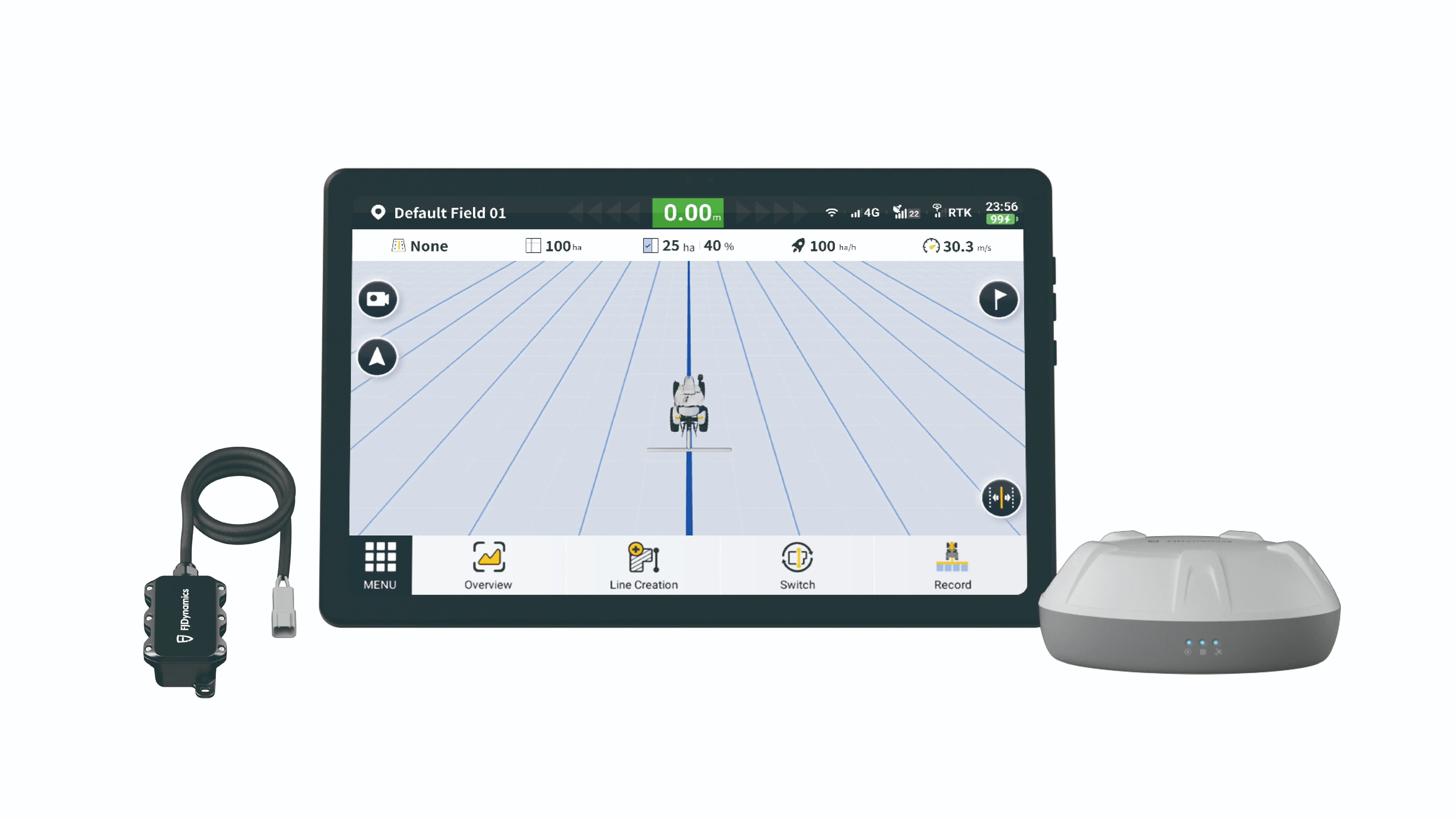

AG1 ISOBUS Kit

Built upon the AG1 Standard system, the AG1 ISOBUS Kit supports ISOBUS without the need for purchasing the original ISOBUS equipment display, making it perfect for anyone looking to use ISOBUS functionalities and manage ISOBUS implements at super low cost.

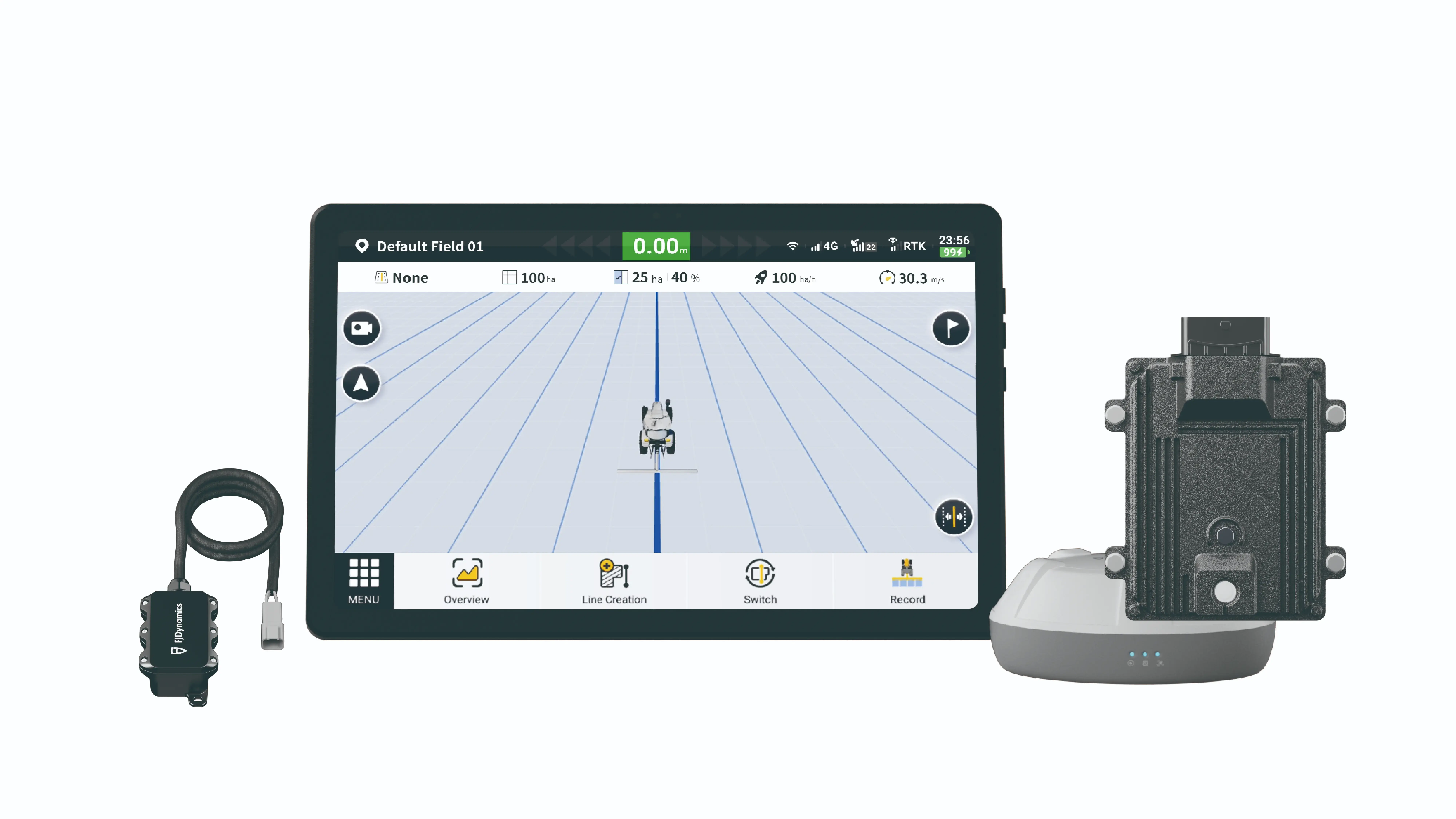

AG1 VCU Kit

The AG1 VCU Kit supports retrofitting a non-ISOBUS sprayer to work with ISOBUS systems, allowing you to make the most of your current equipment without buying a new one. This modification retains the performance advantages of your original equipment while gaining valuable ISOBUS control capabilities.

Once retrofitted, your sprayer equipment supports automatic control and precise task execution under the ISOBUS framework. This helps you save money by avoiding expensive device replacements and reducing waste, bringing new levels of efficiency and precision for your agricultural production.

Your Trusted Partner in Every Season

Harrowing

Planting

Spraying

Harvesting

Get Your Guidance System Connected

Enhance your farming operations by integrating the FJD AG1 with your Farm Management System (FMS). The AG1 agricultural GPS guidance system seamlessly synchronize operational data and executes pre-planned tasks assigned from the platform, such as establishing boundary lines and guidance paths.

Reliable RTK Positioning Infrastructure for Accuracy

Empower your precision agriculture products with highly dependable and precise RTK signals from our advanced base stations. Designed to enhance farm operations, these stations offer centimeter-level accuracy, significantly boosting efficiency and overall productivity.
